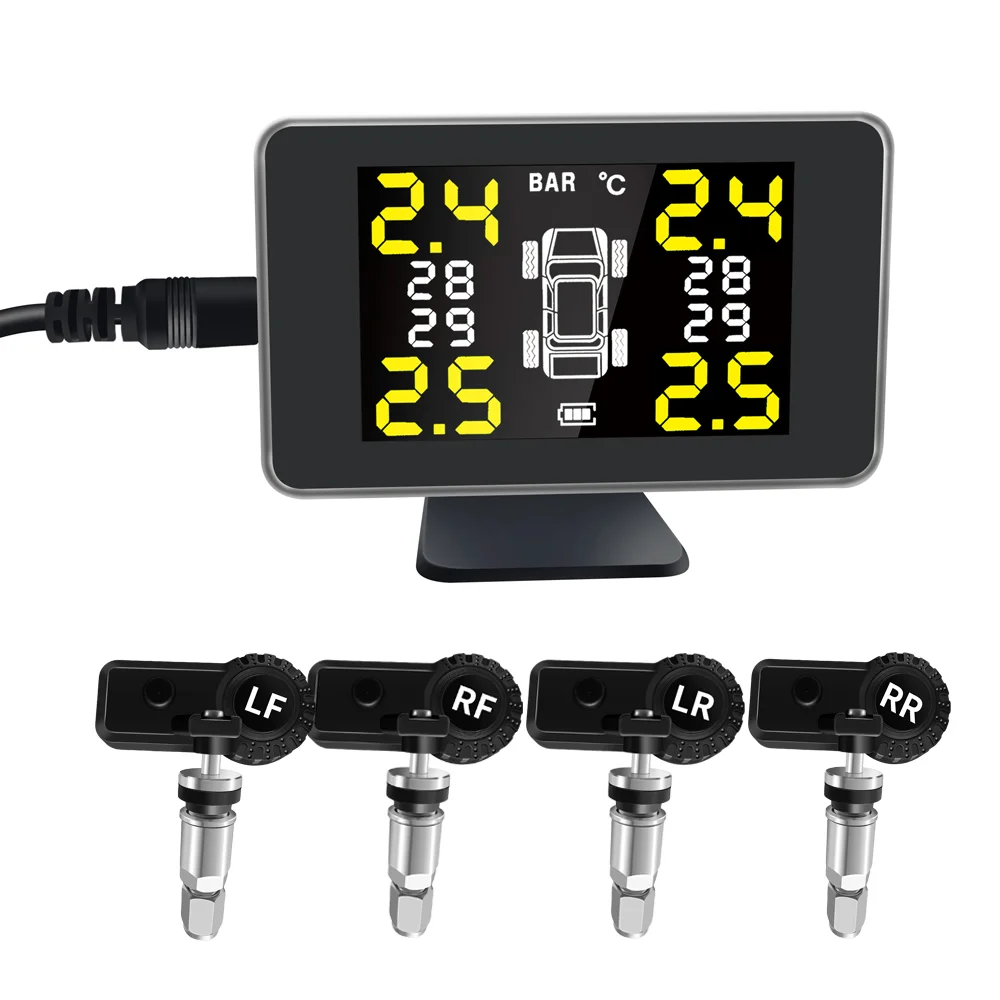

GRUNDIG AN15 TPMS
- Solar Wireless TPMS with 4 Internal Sensors
- Tire Pressure Monitoring System for Car/SUV/RV
- Real-time Pressure & Temp Display
- Auto Start-Stop
- High-Precision Anti-Theft Sensors
- Up to 116 PSI
contact us
Product Highlights
Compact & Lightweight
At just 50g and pocket-sized (78×46×21mm), the AN15 installs without effort and stays discreet on any 4‑tire passenger vehicle.
Reliable Alerts · 73 PSI Max
Supports tire pressure up to 73 PSI with configurable low/high thresholds (26 PSI / 46 PSI). Real-time monitoring for daily safety.
Wide Climate Tolerance
Operates from -30°C to 105°C and stores from -40°C to 80°C. Built to perform in extreme heat or cold across seasons.
Technical Specifications
Item weight
50g
Item size
78 × 46 × 21 mm
Compatible Vehicles
4‑tire vehicles with pressure up to 73 PSI
Temperature Setting Range
60°C – 110°C (140°F – 230°F)
Operating Temperature
-30°C – 105°C (-22°F – 221°F)
Storage Temperature
-40°C – 80°C (-40°F – 176°F)
Input Voltage
DC 5V
Low Pressure Alarm
1.8 bar (26 PSI)
High Pressure Alarm
3.2 bar (46 PSI)
Installation Note
The AN15 is designed for standard passenger vehicles with up to 73 PSI tire pressure. Screw the sensor onto each valve stem, place the display unit inside the cabin, and configure your desired pressure thresholds. Typical installation takes less than 20 minutes.
